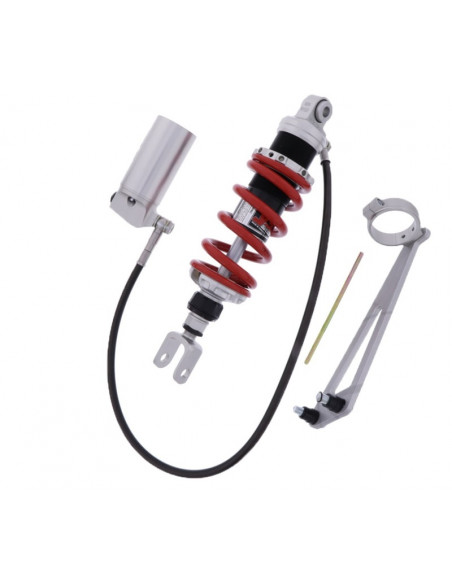

Product Information: Mono Shock Absorber with Separate Reservoir - Top Line
The mono shock absorber features DE CARBON technology with a separate reservoir. It is part of the Top Line series and has ABE approval.
Adjustment Options:
- Mechanical spring preload
- Rebound adjustment
- Compression adjustment
- Height adjustment
Technical Specifications:
- Piston Diameter: 45 mm
- Piston Rod Diameter: 16 mm
- Shock Absorber Length: 330 mm
- Height Adjustment: +/- 5 mm
- Length Adjustment Range: 325-335 mm
- Top Mounting: 12 mm
- Bottom Mounting: 30 mm
Spring Characteristics:
- Inner Diameter: 56 mm
- Spring Rate: 100 mm
- Spring Length: 150 mm
