Amortisseur arrière YSS Mono
Amortisseur arrière YSS Mono

Amortisseur arrière YSS Mono

YSS
1138488
En stock
506,99 €
TTC

Payez jusqu'en 4x sans frais, soit 126,75€ par échéance avec paypal paiement 4 fois .En savoir plus

Commandez avant 161 heures et 18 minutes pour une expédition le 11/08

Description

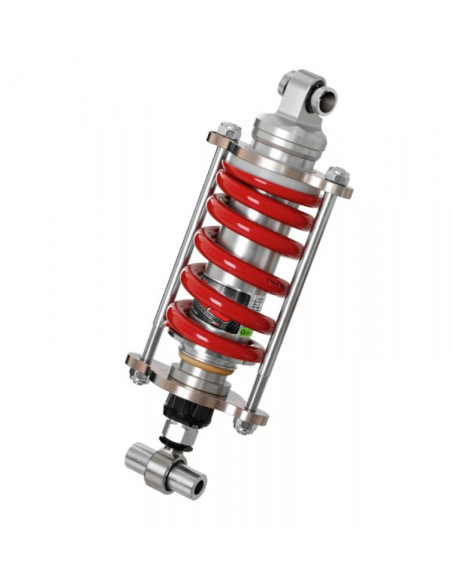

The shock absorber features a precisely machined aluminum body and is adjustable in both spring preload and rebound damping (30 clicks).
The spring preload is locked in place using a set screw, and the damper length can be adjusted by up to +10 mm.
The necessary adjustment tool is included in the package.

Technical Specifications:

  • Type: Gas pressure
  • Top Mounting: Eye
  • Inner Diameter (Top): 16 mm
  • Length: 310 mm
  • Bottom Mounting: Eye
  • Inner Diameter (Bottom): 12 mm

Adjustment Options:

  • Stepless spring preload
  • Length adjustment (+10 mm)
  • Rebound damping

Additional Information:

  • Spring Color: Red
  • Spring Rate: 200
  • Spring Length: 150 mm
  • Spring Diameter: 56 mm
  • Reservoir: No
  • Manufacturer: YSS
  • Piston Diameter: 45 mm
  • Piston Rod Diameter: 16 mm

Détails produit

Diamètre piston amortisseur (mm)
45
Diamètre tige amortisseur (mm)
16
Longueur (mm)
310
